Apple's Electromagnetic Shielded Testing Chamber: A Revolution in EMC Testing

In the realm of electronic device testing, ensuring the accuracy and reliability of results is paramount. Historically, the industry has grappled with the limitations of conventional testing apparatuses. These traditional tools often suffer from inadequate temperature regulation, insufficient shielding from external electromagnetic influences, and suboptimal electromagnetic anti-reflective properties. Such shortcomings can lead to skewed test outcomes, potentially compromising the performance and safety of electronic devices.

However, Apple, the tech titan known for its relentless pursuit of innovation, has introduced a groundbreaking electromagnetic testing chamber:

Patent Name: ELECTROMAGNETIC SHIELDED TESTING CHAMBER WITH VENTILATION
Document ID: US 20230050818 A1

The patent filed by Apple gives a detailed design overview for an EMC (electromagnetic compatibility) testing chamber tailored for equipment susceptible to electromagnetic disturbances. The design also includes tubing for airflow between the interior of the testing chamber and the external environment. Such EMC chambers are crucial in the electronics industry, serving as a platform to evaluate the electromagnetic behavior of new devices and their potential to disrupt or be disrupted by other electronic systems.

Redefining EMC Testing Standards

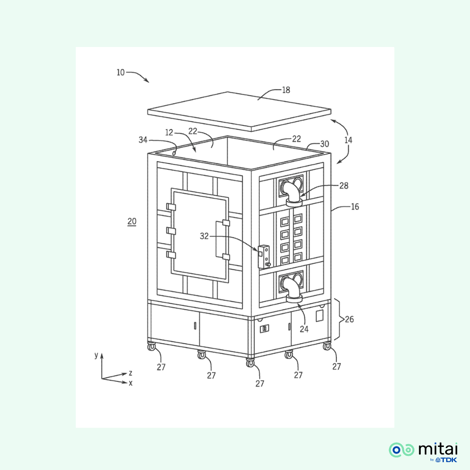

Apple's newly patented Electromagnetic Shielded Testing Chamber promises to set a benchmark in EMC testing. This state-of-the-art chamber boasts features that effectively counter the pitfalls of conventional testing tools. Below is a diagram of the testing apparatus.

Image source: US Patent Number 20230050818 A1.

One of the chamber's standout features is its ability to robustly block the transmission of external electromagnetic waves. This ensures that the testing environment remains uncontaminated by external electromagnetic interference, a common issue with traditional apparatuses. Additionally, the chamber is designed to reduce the internal reflection of electromagnetic waves, ensuring a stable and uniform testing environment. Integral components of the EMC setup, such as its enclosure and ventilation systems, incorporate design features that minimize or eliminate electromagnetic reflections. Importantly, interior portions of the chamber, including the inner layers of the enclosure and the air circulation components, are fabricated using EMI-absorbing materials. A notable example of this material is a dielectric polyurethane blend recognized for its efficacy in attenuating electromagnetic waves.

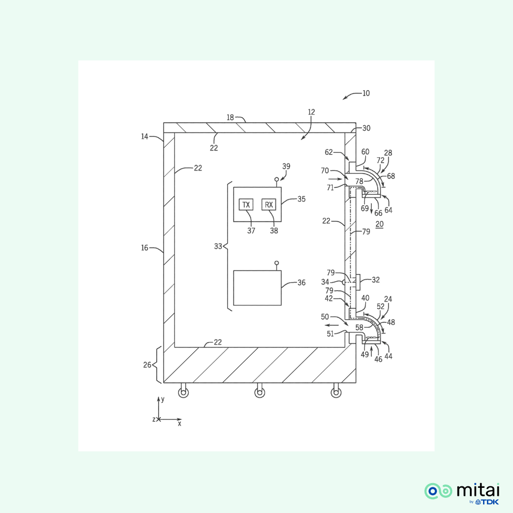

A cross-sectional view of the testing apparatus. Image source: US Patent Number 20230050818 A1.

The chamber incorporates a specialized tube, further enhancing its shielding capabilities. This tube plays a pivotal role in blocking external electromagnetic waves, ensuring that the chamber's internal environment remains as pristine as possible.

A Leap Toward Precision

These features help Apple's EMC chamber to achieve highly accurate testing results. By mitigating the challenges posed by external electromagnetic interference and internal reflections, the chamber ensures that devices are tested under optimal conditions and will be ready for robust performance once they hit the market.
